Micro-resistance Welding

Resistance Welding

Over 12 Capacitive Discharge resistance welding machines in Lynn Welding's micro-resistance welding department.

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. Lorem ipsum dolor sit amet, consetetur sadipscing elitr. Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua.

Lynn Welding’s Micro-resistance welding capabilities were born out of a customer request. The request was for a .004” thick stainless-steel foil patch to be welded onto an existing metal encapsulated insulation blanket. The metal encapsulated insulation blanket was permanently joined to a sophisticated military exhaust system. If the fatigue cracks in that exhaust system could not be patched the entire unit would be scrapped. Lynn Welding utilized its Amada 1000 ADP Advanced Capacitive Discharge Welders to develop a repair procedure that was ultimately approved by the United States Air Force.

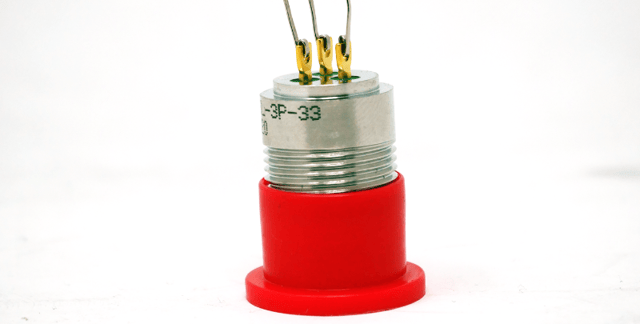

Our facility keeps numerous welding heads and handheld units in stock so that most types of welds can be performed at any time. Our micro-resistance seam welding heads are typically used for hermetic sealing of thin foils while the micro-resistance welding press heads are often used to join terminal connections in sensitive electrical components. Many sensitive electronics that cannot be exposed to heat from a soldering process can be micro-resistance welded. Most recently Lynn Welding was hired by a major defense contractor to micro-resistance spot weld a .011” diameter spring onto a gyroscopic guidance component. The springs on this component were used to provide stabilization during impact events. The welds were critical to the functionality of the device and the micro-resistance welding process was selected because of its reproducibility, longevity and reliability. Foil and wire thicknesses from .0005” to .015” are typically welding using the micro-resistance welding process.

welding sluions
Micro-resistance Welding

Applications

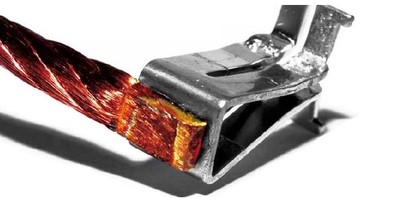

  • Wires and Foils
  • Honeycomb Welding (for pre-braze positioning)
  • Sensitive electronics

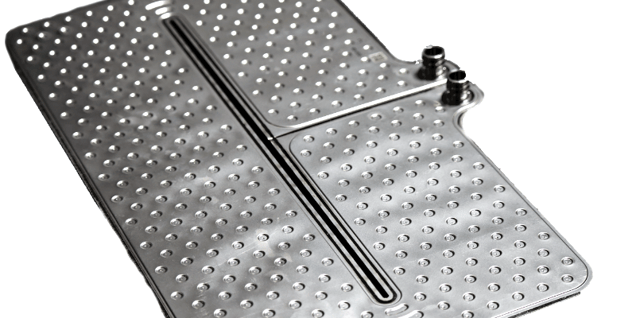

  • Hermetic sealing of foils using the micro-resistance seam welding process.
  • Small electronic and mechanical components
  • Lighting Components
  •  Battery Tabs
  • Sensors
  • Motor connections
  • Miniaturized components.
  • Joining in heat sensitive areas

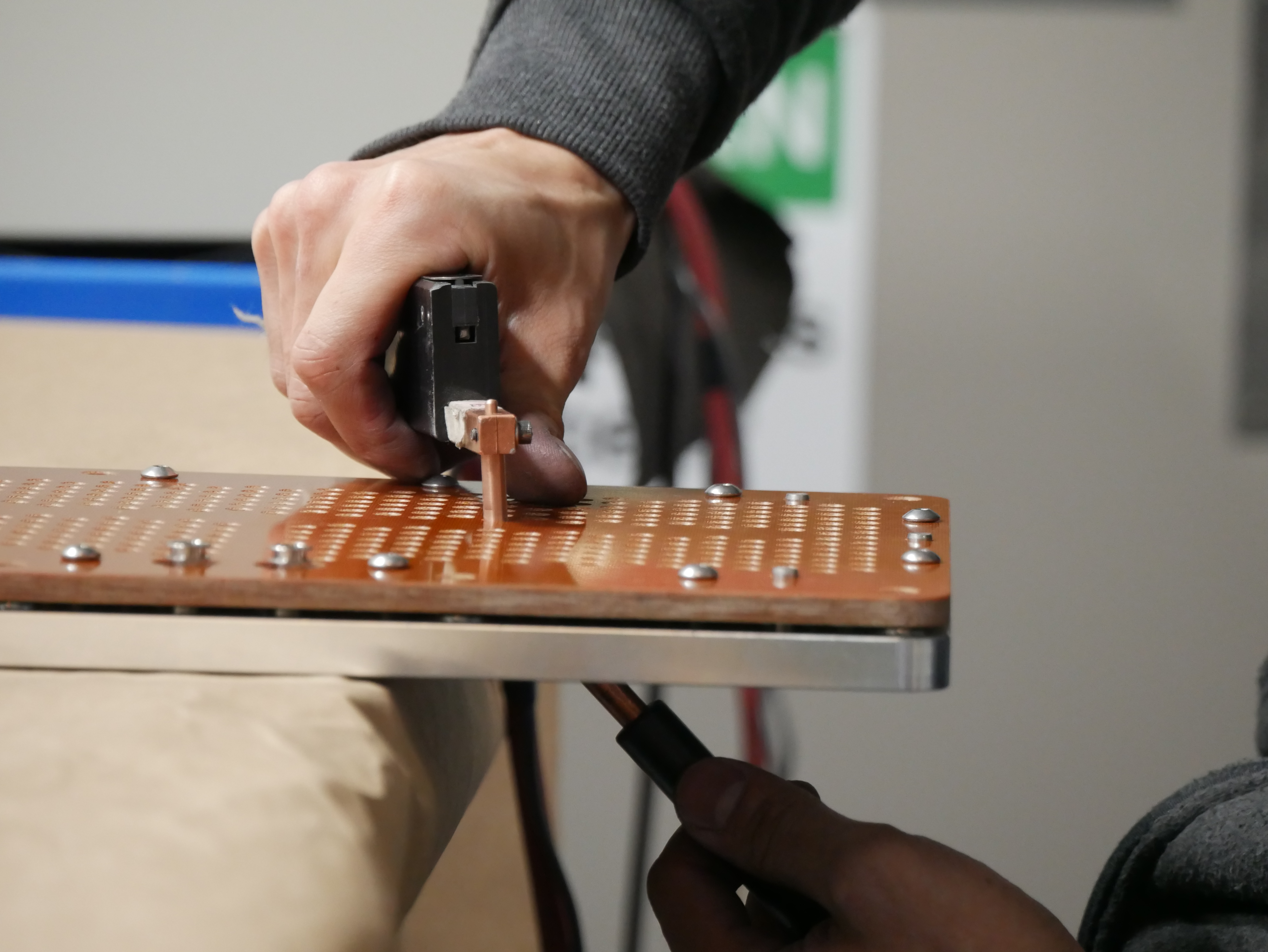

resistance welding poke tack

Let's work together on your next Welding project

To learn more about our Micro-resistance welding capabilities and to receive a quote please submit a request below. All requests for quotes will be fulfilled within 24 business hours!
